Infinity Water Corp, Bulk Water Dispensing System

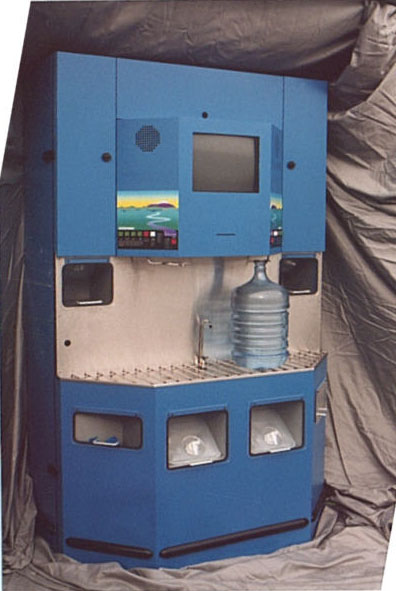

This high-tech water-dispensing machine processes and analyzes water prior to dispensing it in 1, 2.5 and 5-gallon containers. The system is designed for use in commercial grocery stores.

The system filters, oxygenates, ozonates, and analyzes water with a computer based control system built into the unit.

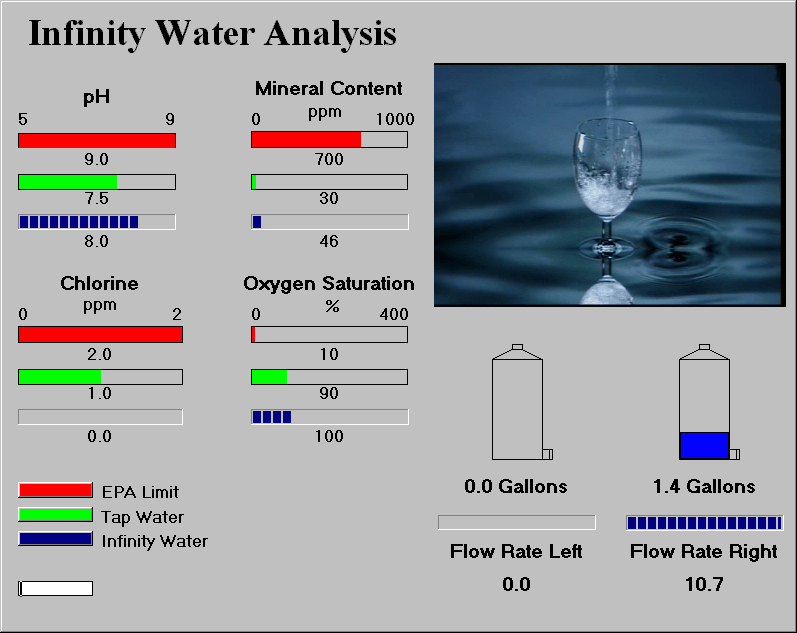

During idle times, a multi-media presentation displays the benefits of the clean water system. While dispensing water, the system continuously monitors and  displays a real-time analysis of mineral content, oxygen concentration, ph and flow rate.

A print out of all technical data and price is provided to the customer at the end.

Collapsible containers in 1 and 2.5 gallons are provided for filling. Optional 5-gallon containers are available as well.

Various industrial grade filters strip all impurities in the water. Oxygen is then injected into the water for health benefits and to increase shelf life. Ionized water is also available for added purity.

A build-in modem automatically calls home for container re-fills and filter change after pre-determined amount of water is dispensed.

Microsoft Windows based software is used for the user interface as well as the communications, engineering, and calibrations screens.

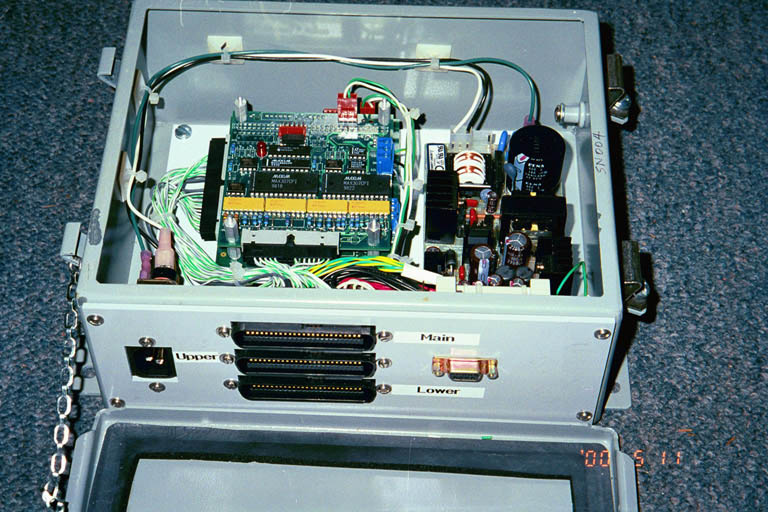

Independent, microprocessor-based data acquisition and control boards communicate with the PC for engineering conversions, calculations, and user display.

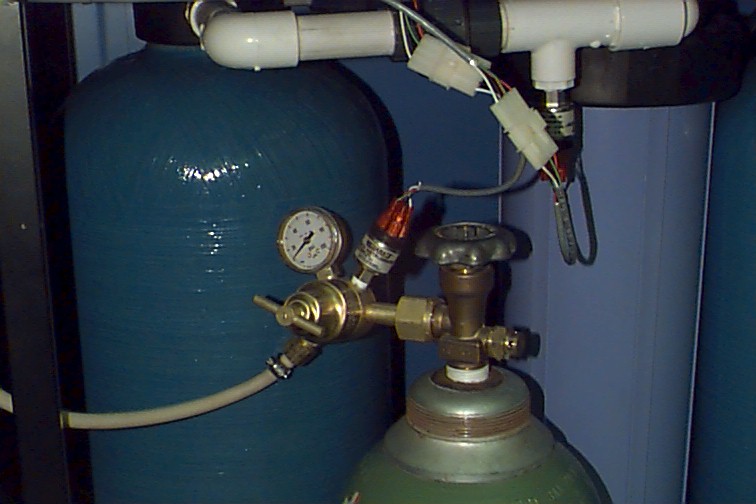

Over a dozen of sensors like this one measure pressure, flow rate, oxygen saturation, pH and conductivity to provide a complete picture of the water quality.
