Multi-Zone Hot Bonder

Our Multi-Zone Hot Bonder System is specifically designed to perform high-temperature cure operations required to bond composite, metal, or fiberglass repair materials. It can control almost any heating source including silicone rubber heaters, band heaters, cartridge heaters, infrared lamps, and quartz heaters.

Intuitive, graphical User Interface greatly simplifies cure creation, operation, logging and reporting while enhancing the cure monitor and presentation.

Sophisticated software monitors all facets of cure performance. The Hot-Bonder will automatically alert the operator to any conditions affecting cure performance or safety.

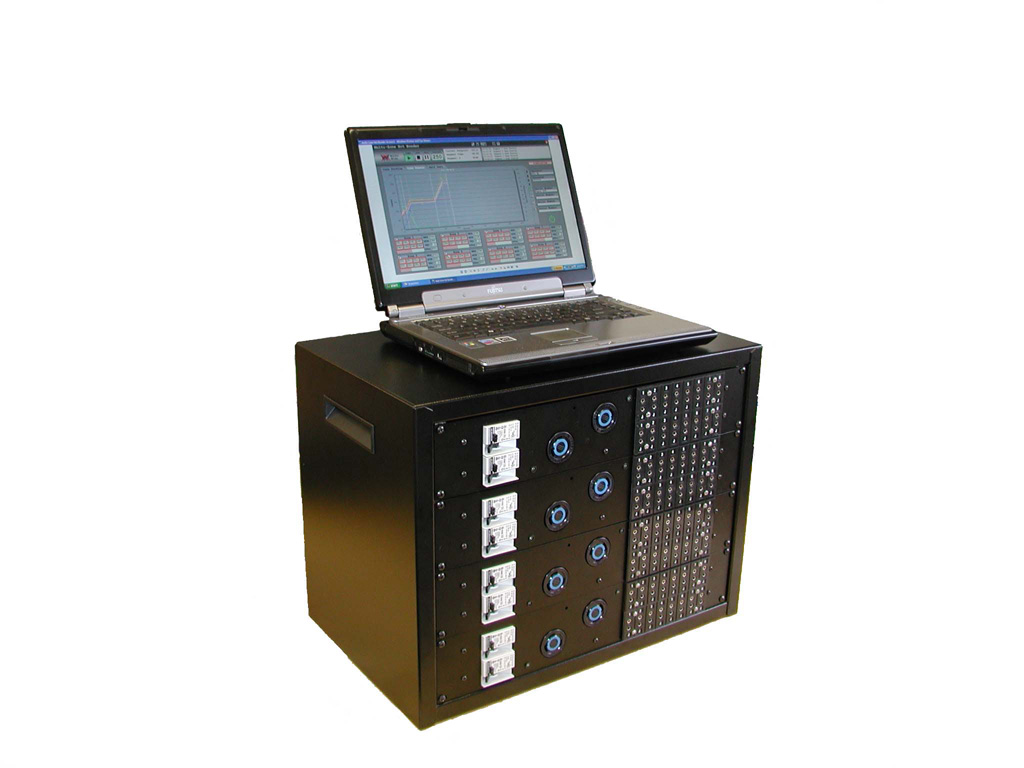

Model MZ8-240-35

8-Zone Hot-Bonder

Controls up to 8 independent zones.

115/230V, 35 Amp per zone
Model: MZ-AC-64

64-zone Hot Bonder
Controls up to 64 independent zones.
115/230V operation, 10A per Zones.
Model: MZ2-240-35

Dual Zone version controls two zones at 115/230V, 35A.

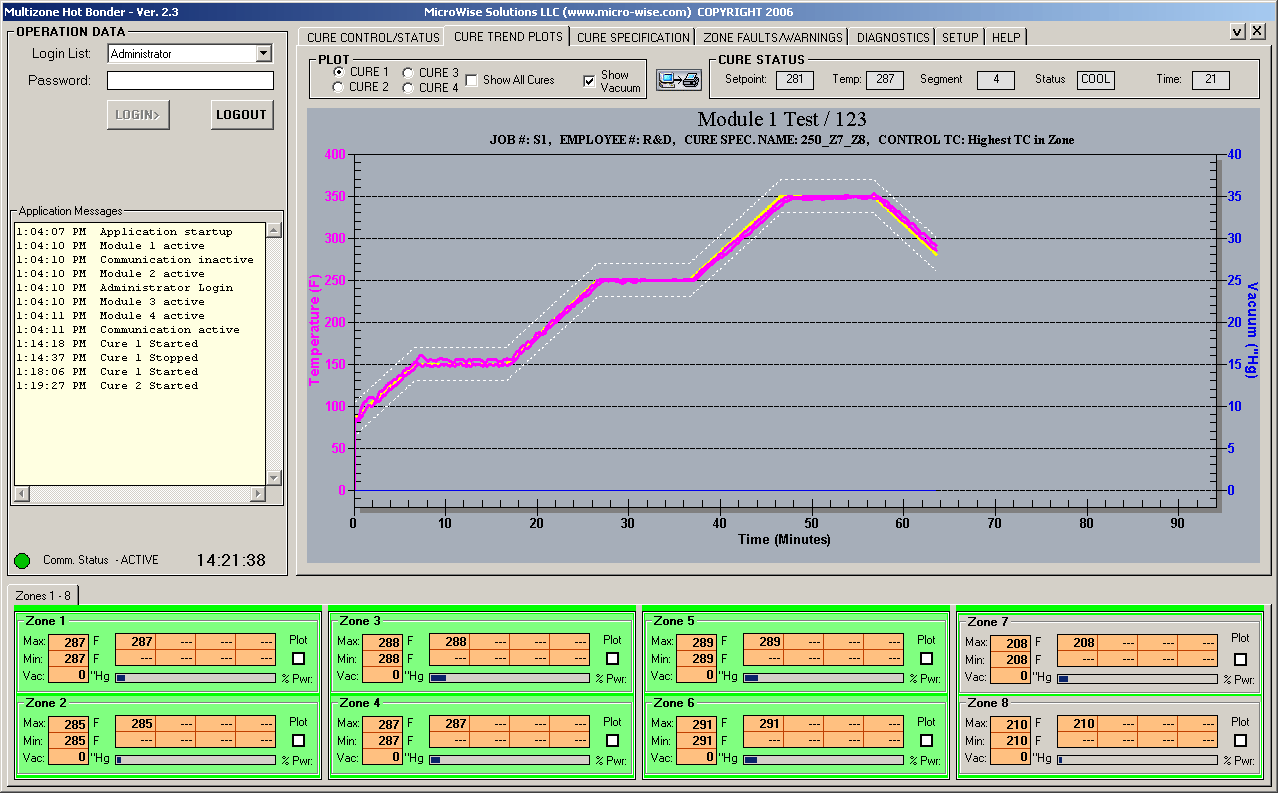

Intuitive, graphical User Interface displays the cure profile and all temperatures and vacuum readings at a glance.


Our software allows running up to 4 independent cures simultaneuously. It's like have 4 Hot Bonders in one!

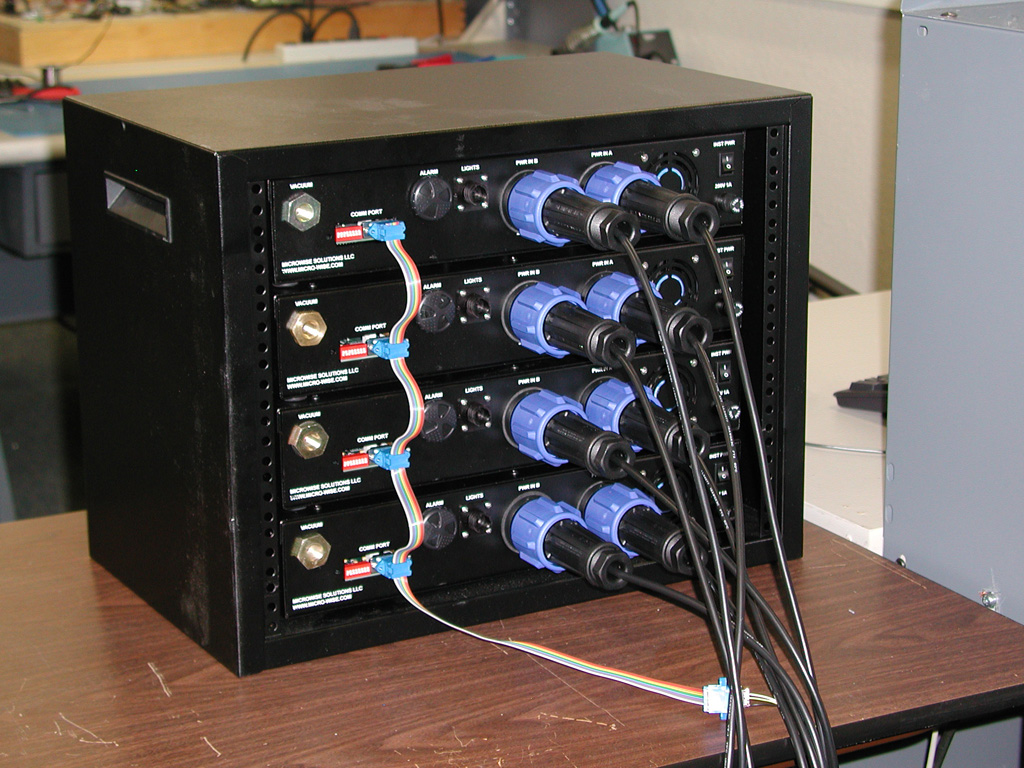

Back side of the 8-zone Hot Bonder. Note each zone has it's dedicated power input at up to 32 amps.

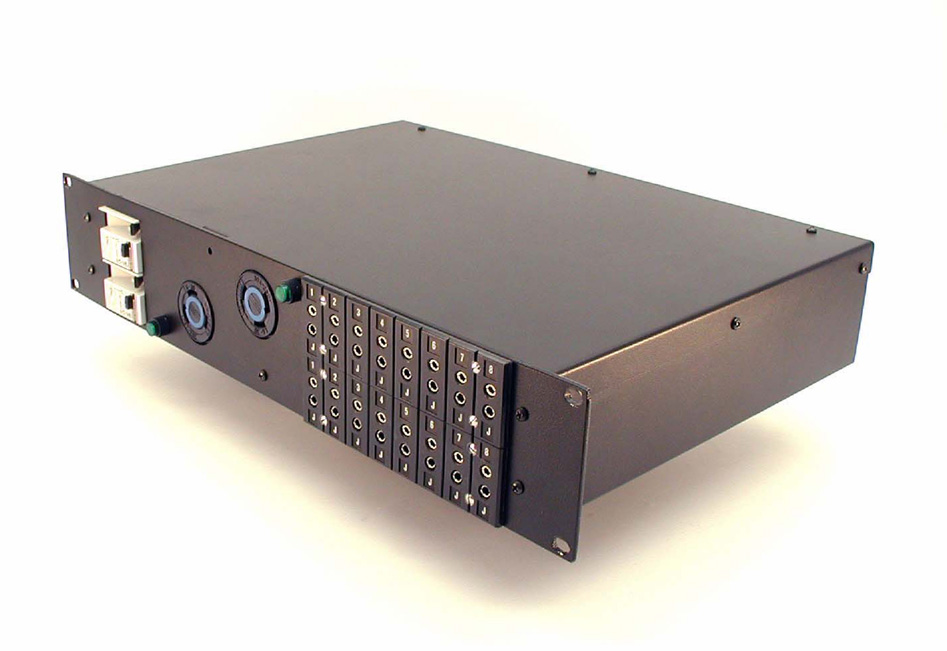

Our Multi-zone System is built on this dual-zone modules. The system can be configured to be any number of zones -- in multiples of 2 zones by using the appropriate number of modules.

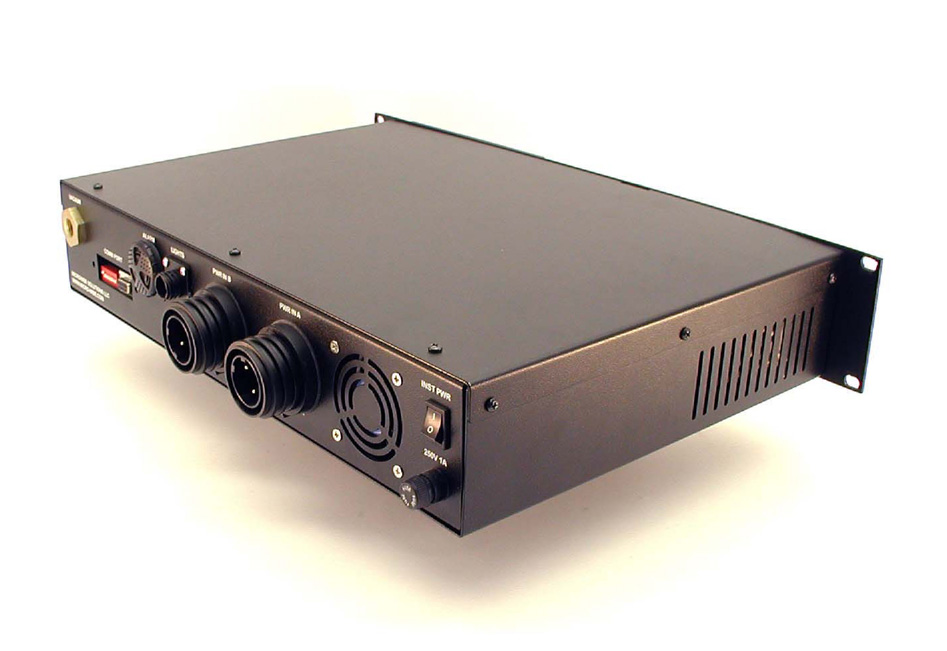

Back side of the standard dual-zone unit.

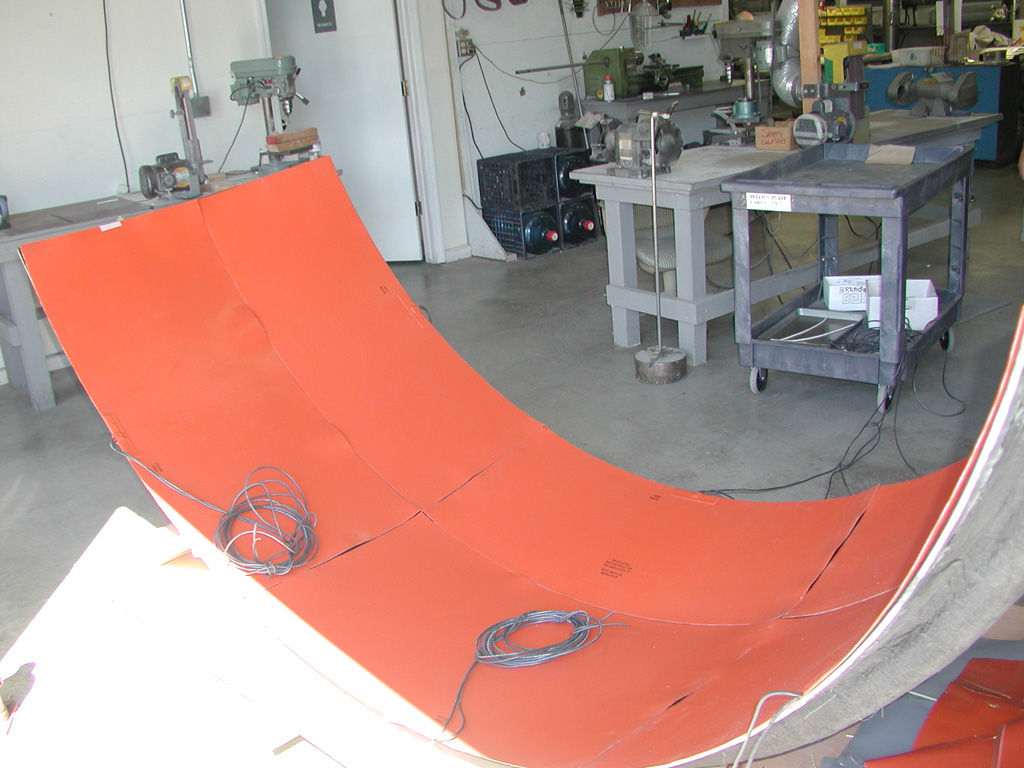

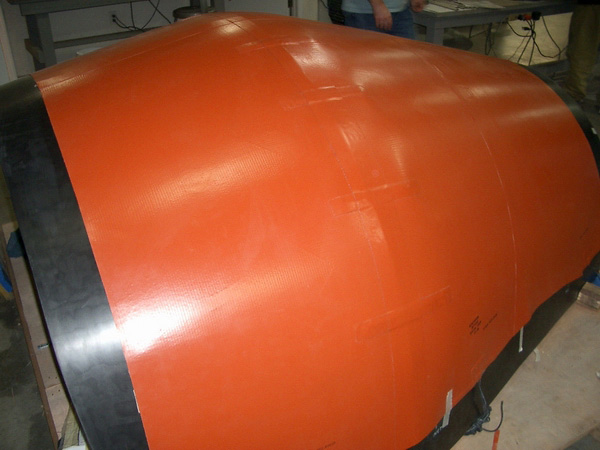

Our 8-zone Hot Bonder is used to curing parts like these on a daily basis.
